API Call

API calls are used to perform actions on the controller such as clearing a short circuit or performing a light test. API calls include:

Load Port Fault Reset: Resets all statuses (ie. low voltage disconnect, short circuit, output overload) on load port.
P3 Port Fault Reset: Resets all statuses on P3 (aka. I/O).
Motion Fault Reset: Resets short circuit on motion sensor. This API call will only work on controllers with motion sensors.
Reset All Statuses: Resets all statuses on Load 1/2 and I/O port.
Start Load Light Test: Start light test and reset all statuses. This API call is only available for systms with lights.
Reboot: Reboot the controller (this will save the settings currently on the controller).

ℹ️ You have to have a certain user permission level to perform API calls on systems. Contact Clear Blue to learn more.

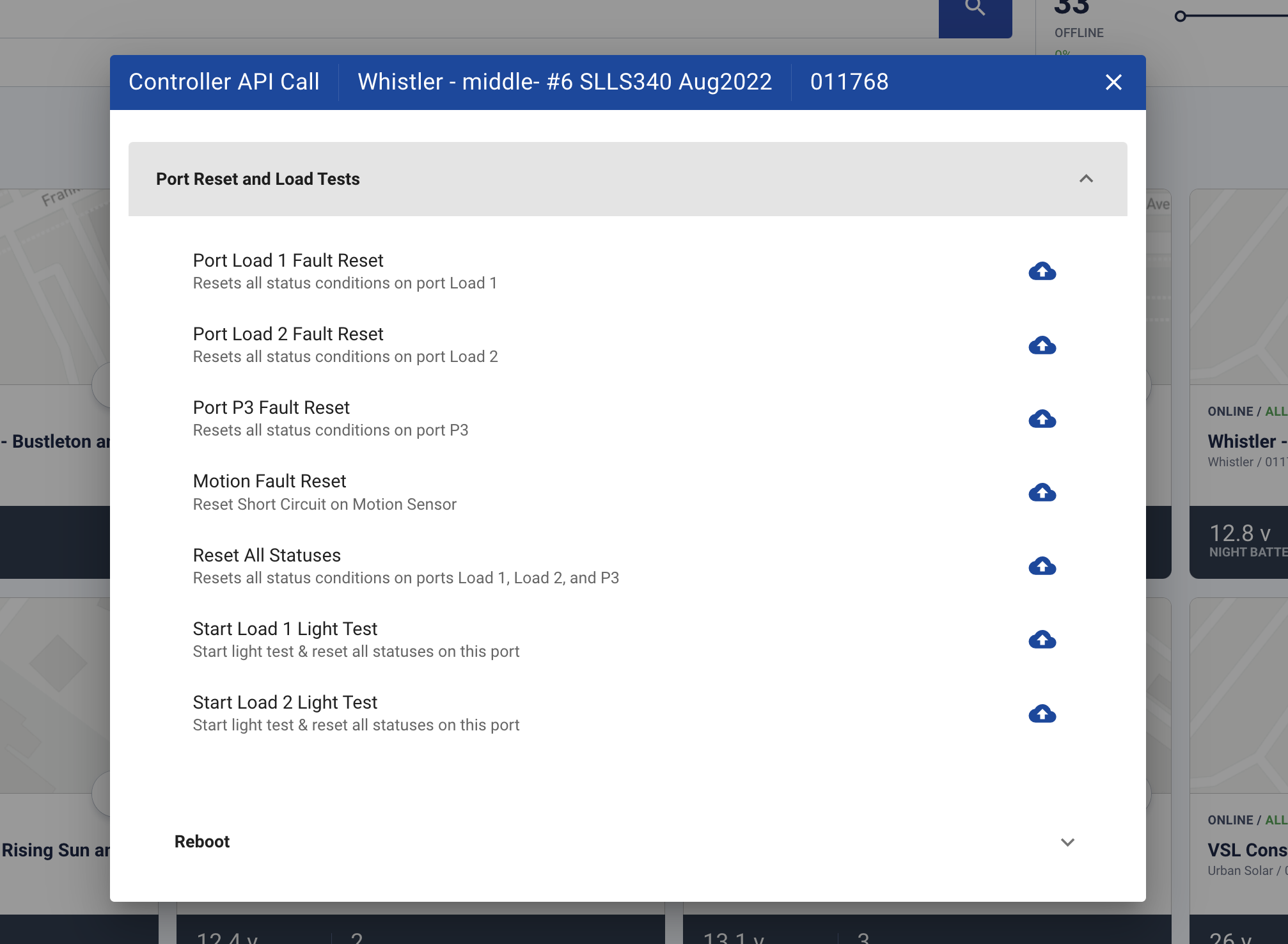

Click on the to queue the API call. The options on the list may differ depending on your system. All systems provide options to reset faults on Load 1, Load 2, I/O Port (aka. P3) and motion. Depending if your system has a light load or not you could either see light test options or load test options.
